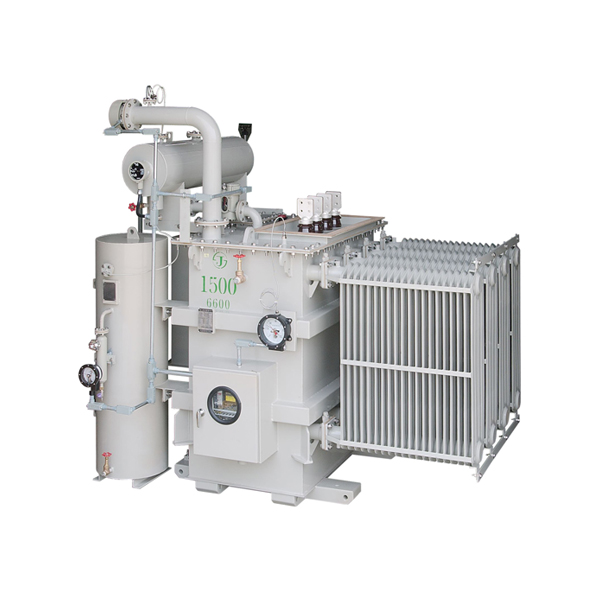

    Oil-immersed type

    Energy-saving oil-immersed transformer with more than 75 percent reduction of no-load loss using amorphous metal instead of silicone sheet.

    (1) No-load loss reduction

    Minimal no-load loss by amorphous structure and super-laminate metal pin materials

    (2) Economic efficiency

    "Operation and maintenance cost decrease and life extension expectation of transformer by the loss reduction"

    (3) Harmonic wave reduction

    High Efficiency and compactification by excellent magnetic characteristics in the high frequency and harmonic wave band



    Applicable Standard

    IEC 60076, JEC 2200, KS C 4317

    Frequency

    50, 60Hz

    Temperature rise

    Oil

    Winding

    60℃
    65℃
    BIL (kV)

    System Voltage

    Power frequency withstand voltage

    Impulse Voltage

    24 7.2 3.6 0.6 below
    50 22 16 3
    150 60 40 -

     Primary voltage (kV)

    22.9 6.6 33.3 0.6 below

    Tap voltage (kV)

    F23.9-R22.9-
    21.9-20.9-19.9
    F6.9-R6.6-6.3-
    6.0-5.7
    F3.45-R3.3-3.15-
    3.0-2.85
    -

    Secondary voltage (kV)

    6.6, 3.3, 0.48, 0.44, 0.38, 0.22
